Andritz Vertical Water Intake PumpsAndritz Vertical Water Intake Pumps

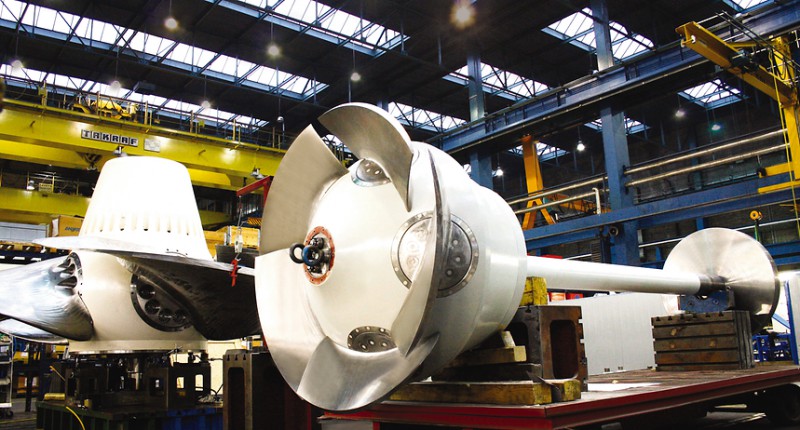

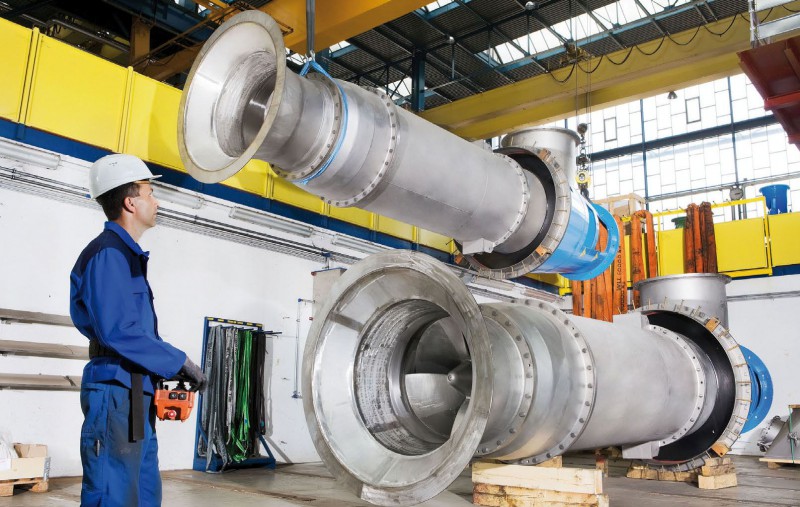

Vertical Intake Pumps VLSP
Scarica catalogo pompe verticali serie VLSP
Field of application:
| Thermal Power: | Cooling water |
| Desalination/RO: |
Water Intake Effluent pump to pipe line Effluent pump back to the river of sea |
| Water: |
Irrigation Waste water after mechanical treatment Drainage Storm water |
| Structural_form: | Pull out or not pull out |
| Impeller | Radial, Mixed flow, Axial |
| Head: | Up to 100 m |
| Discharge: | Up to 36.000 mc/h |
| Power: | Up to 1.500 Kw |
| Materials: | S 235-GG / 1.4462 / 1.4517 / 1.4410 |
Irrigation Pumping Station in Sudan
| Field of Application: | Irrigation Pumping Station |
| Q.ty: | 2 x 10 |
| Type: | Vertical line shaft pumps |
| Impeller: | Axial |
| Head: | m 11,05 / 9,55 |
| Flow rate: | mc/s 6,5 / 6,5 |
| Power: | Kw 960 / 860 |
| Speed: | rpm 422 / 422 |
Cooling water pump China
| Field of Application: | Cooling Water Pumps for Coal Fired Power Plant |
| Q.ty: | 4 |
| Type: | Vertical line shaft pumps |
| Impeller: | Mixed flow |
| Head: | m 18,80 |
| Flow rate: | mc/s 15,69 |
| Power: | Kw 3.800 |
| Speed: | rpm 295 |
Cooling water pumps Belgium
| Field of Application: | Cooling Water Pumps for a Power Plant |
| Q.ty: | 2 |
| Type: | Vertical line shaft pumps |
| Impeller: | Semi axial |
| Head: | m 24,50 |
| Flow rate: | mc/s 4,25 |
| Power: | Kw 1.250 |
| Speed: | rpm 595 |
Cooling water pumps Austria
| Field of Application: | Cooling Water Pumps for a Power Plant |
| Q.ty: | 2 |
| Type: | Vertical line shaft pumps |
| Impeller: | Semi axial adjustable during opertion |
| Head: | m 21 |
| Flow rate: | mc/s 7,1 |
| Power: | Kw 1.800 |
| Speed: | rpm 370 |
